Data Sources

Data sources can be configured to make database tables or views available in the SKOOR dashboards. With SKOOR version 7.2, new features have been added to create and edit tables as well as table data. MySQL and PostgreSQL databases are supported. Additionally, scripts can be defined as datasources to request data from almost any other source.

Create a PostgreSQL or MySQL data source

Only administrator users can create data sources

Click the + sign and add connection parameters:

Click the Save button below the connection parameters to connect to the database. If the database is reachable, a green status icon appears together with a few tabs for further actions on this database:

Define data scopes and write permissions

Only administrator users can define data scopes and write permissions

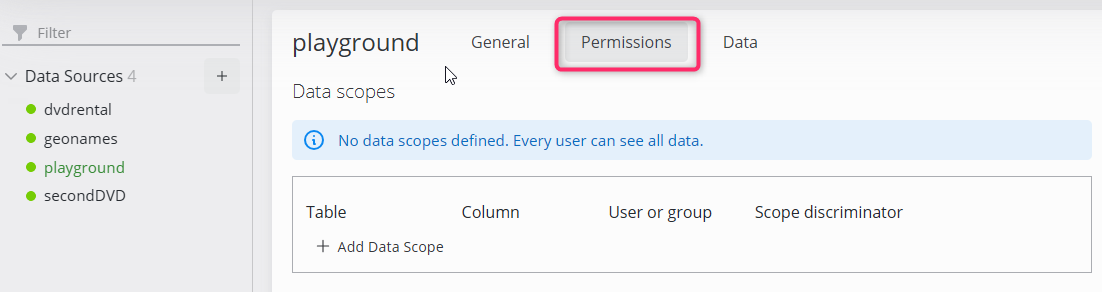

In the Permissions tab, users or user groups access to the data source can be configured.

Administrator users are allowed to read and modify all data from all tables

Data scopes

This section allows the definition of scopes for each user or user group. Only data that matches the scope is visible by the respective user or user group. This applies to the data preview in the data source section as well as to the dashboards.

Scope discriminator expressions can be plain string values or operators described on the data source query editor page.

Example expressions:

Expression

Description

1234

Matches all  rows with column value equals to 1234.

NOT(NULL())

Matches all rows with non NULL column value.

GE(0)

Matches all rows with column value greater equals zero.

foo%

Matches all rows with column value starting with "foo"

Write permissions

In general, the following rules apply to the SKOOR user roles:

  • users with the editor role can read all data from all tables

  • users with the operator role can see no data at all

Define write permissions to

  • let users with the editor role edit data in selected tables

  • let users with the operator role read and edit data in selected tables

Preview and edit data

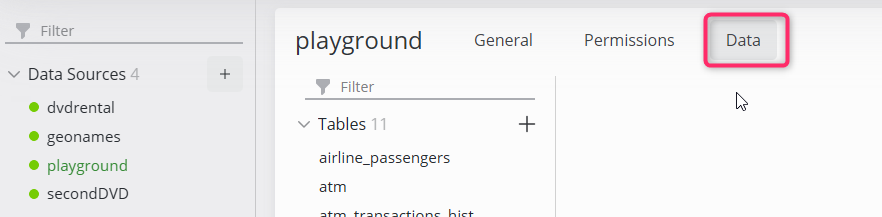

In the Data tab, all tables, views etc. of the selected data source are visible. Operator users will only see tables as defined by write permissions.

Preview

Select an item from the groups at the left (e.g. Tables) to display its data. Click a column name to sort it or use the Toggle filters button at the right hand side to search for specific records.

Edit data

Table data can be edited while views, materialized views etc. are read only

Just click into a column of a specific record to edit its data or delete a record using the respective recycle bin icon. Several changes can be made at once and will be marked by a color change and an undo option at the left.

Click Save changes to persist the data.

Export data

Data can be exported to a CSV file by clicking the Export button. The resulting file will contain only data as displayed in the preview, meaning that the defined scopes are applied.

Data will be exported UTF-8 encoded

Import data

The file size is limited to 100MB for CSV and 2MB for XLSX

Tables can be created directly while importing data. Visit the Create a table section for details

Excel (XLSX format only) and comma separated (CSV) files can be imported to replace or update a table. Click the Import button to open the dialog:

First, click Import from file to open a file. After that, select one of the following import modes:

  • INSERT: Insert all records from the file. Duplicates are inserted if the table definition allows it

  • UPSERT: Insert all records from the file. If a record already exists, it will be updated. A primary key must be defined on the table for this case

  • REPLACE: Existing data will be truncated before the data is loaded from the file

Create a table

Only administrator users can create new tables

New tables can be created manually or together with a data import.

Click the + icon next to the Tables group to open the Add table dialog:

To define a table manually, click the respective Add button to add columns and indices and define names, data types an so on. For further information, see the next section, Edit database schema.

To add a table with a data import, switch the Columns radio button to Import:

Click Import from file and open the required Excel (XLSX) or CSV file. The SKOOR software will now evaluate the columns and data types:

To ensure, the same file can be imported again with a future data load, the column names can not be changed. Define a table name (by default, the software takes the file name) as well as primary key, indices, data type and so on and click Create and import to start the actual table creation and data import.

Edit database schema

Only administrator users are able to edit a database schema

Click the options icon on a table item to delete the actual table or edit its schema:

Use the Edit table dialog to actually change the table name, primary key, indices or columns in the database:

Setting

Description

Table name

The name of the table

Primary key

Define a primary key from a single or multiple columns

Indices

Define single or multicolumn indices for the current table

Columns

Define column name, data type and default value. Switch on or off autoincrease and if a column is nullable

Create a script data source

If the data source Type is changed to SCRIPT, the configuration parameters change. Now, a script can be configured together with any parameters needed to generate an output suitable for SKOOR dashboards.

The script output must be formated in JSON

Parameter

Description

Name

Data source name. This name will be available in the widget settings when the Search type is set to dataSource. The Table will always be set to STDOUT:

Fetch executable

Fully qualified path to the program or script that generates the data. This program must be available on the system where the SKOOR web service is installed

Fetch arguments

Command line arguments of the program, one argument per line. Any parameters set in the target widget can be passed to the script as well as arguments set directly in this field.

Example: the URL parameter display is configured as Search query in a table widget:

The same parameter can now be passed to the data source script as well as other arguments, for example the value "123":

Fetch result pointer

If only a subset of the JSON string result of the program is needed in the dashboards, a JSON pointer must be set.

The following example JSON string is generated by a program (formated for readability):

{
  "host": "myhost",
  "filesystems": [
    {
      "size": "51G",
      "used": "22G",
      "available": "27G",
      "usedp": "46%",
      "mountpoint": "/"
    },
    {
      "size": "17G",
      "used": "45M",
      "available": "16G",
      "usedp": "1%",
      "mountpoint": "/home"
    }
  ]
}

Only the filesystems array will be displayed on a dashboard. So the JSON pointer /filesystems must be set as fetch result pointer:

If all objects of a JSON string should be displayed, set the fetch result pointer to "/".

Distinct executable

If a script data source will be used for a filter matrix widget, a JSON array with unique values will be needed. The script or program configured here must return such an array

Distinct arguments

See fetch arguments

Distinct result pointer

See fetch result pointer

Columns

The JSON fields of the script output must be configured as columns to be available as such in the dashboard widgets
